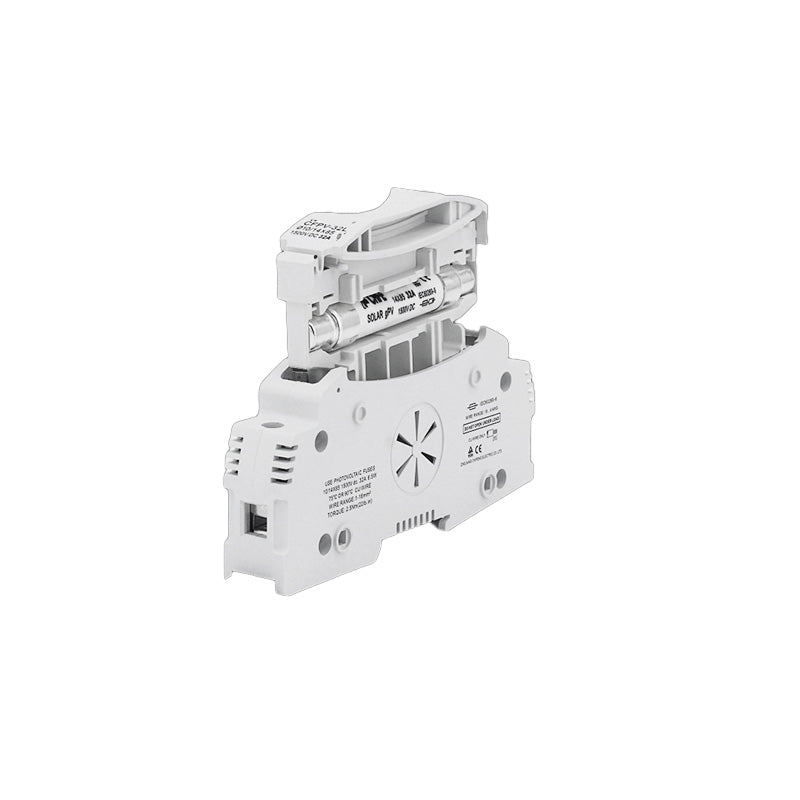

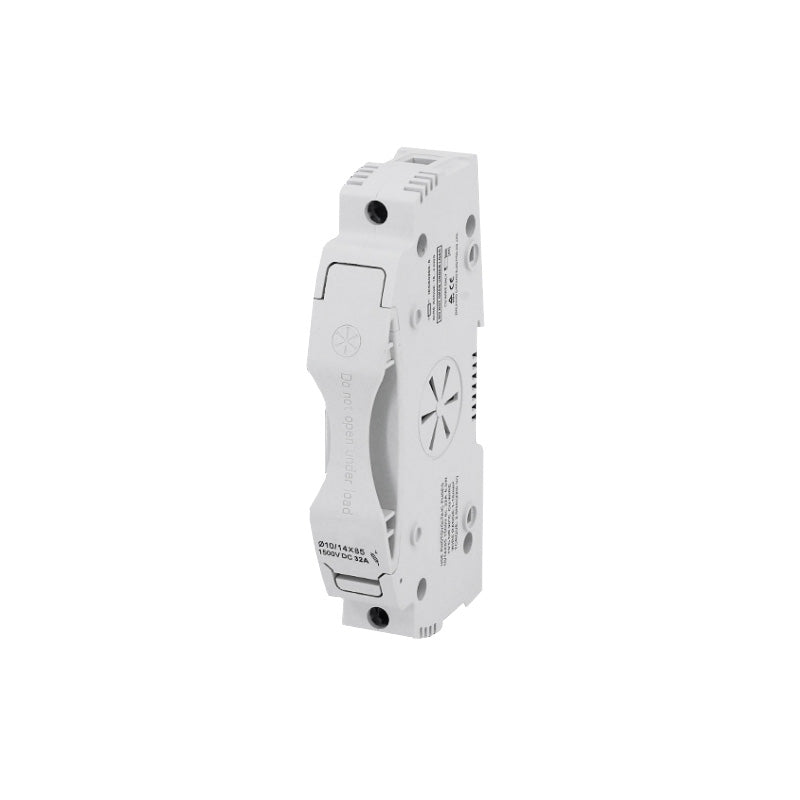

VTL12 1500V DC 1P Fuse Holder

VTL12 1500V DC 1P Fuse Holder

Electrical Characteristics
Rated Working Voltage :1500VDC
Rated Current :50A
Breaking Capacity: 50kA
Wire Range :1-16mm2

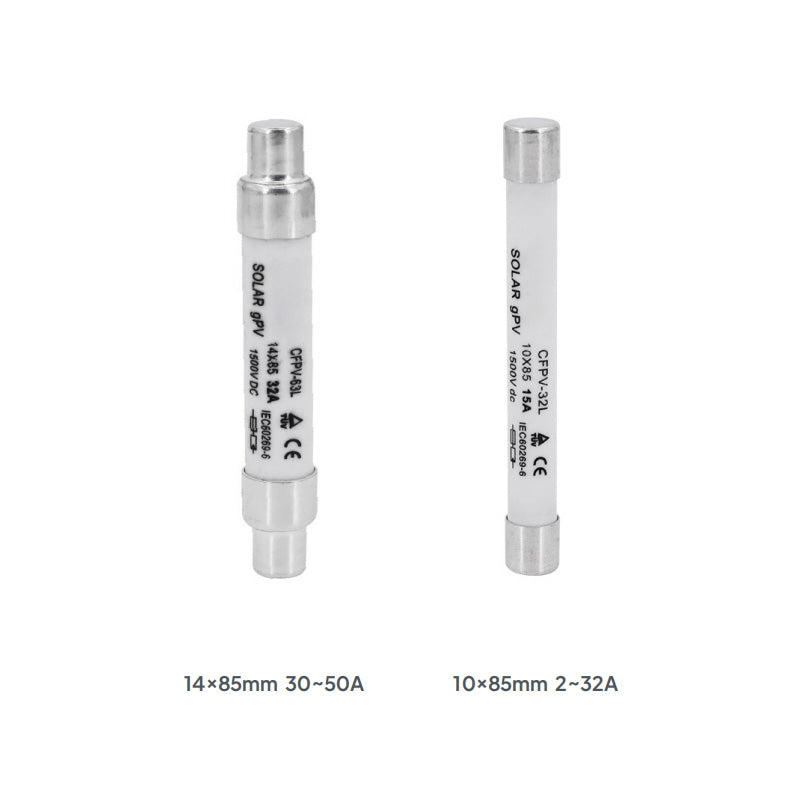

Fuse Specifications
Rated Working Voltage :1500VDC
Rated Current :2~32A 30~50A
Fuse Size :10×85mm 14×85mm
Breaking Capacity :50kA
Class GPV
Time Constant :1-3ms
Installation Environment
Operating Temperature Range :-40~+90°C
Torque 2.5N·m
Standard :IEC60269-6
