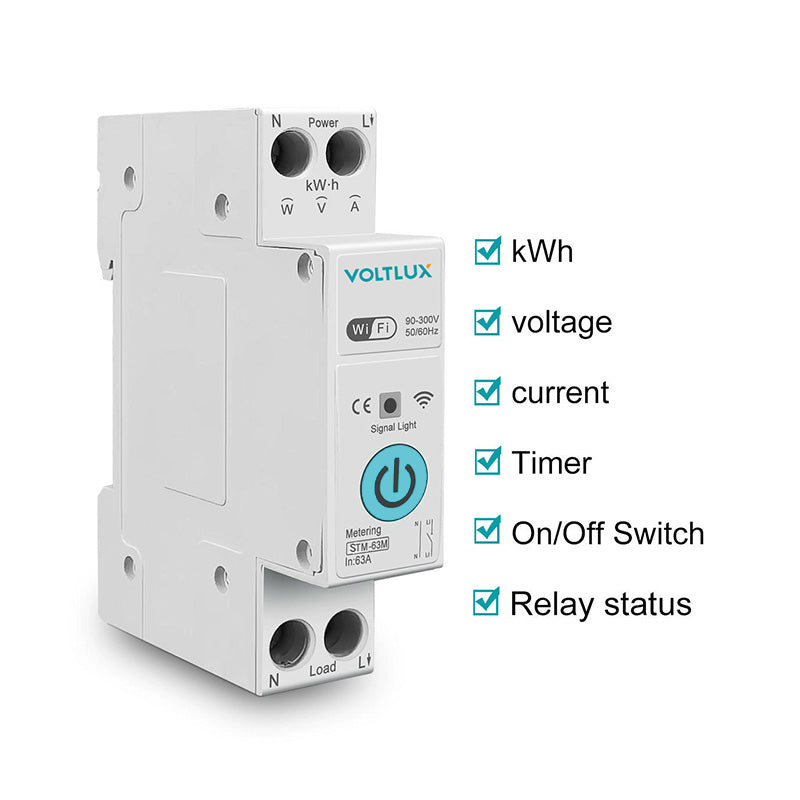

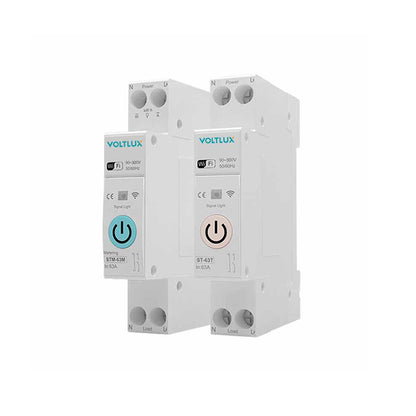

Smart Circuit Breaker

Features

Connection Protocol Type：Only for Wi-Fi IEEE 802.11 b/g/n 2.4GHz
Relay Type： Latching relay type
Rated Operating Voltage： AC 90-240V, 50/ 60Hz
Rated Operating Current： 63A
Poles Description： 1P+N (N pole cannot be cut off)
Circuit Type： Single-phase
Max Wiring Capacity Power side: 10mm²; Load side: 10mm²
Current Scenario： AC1, AC electricity positive import
Mounting Type： 35mm DIN rail
Shell Material： Nylon PA66
Accuracy： ±2%
Operation Type： Mechanical control, remote control via “Smart Life” and “Tuya” APP
Mobile Phone Support System：Android/ iOS
