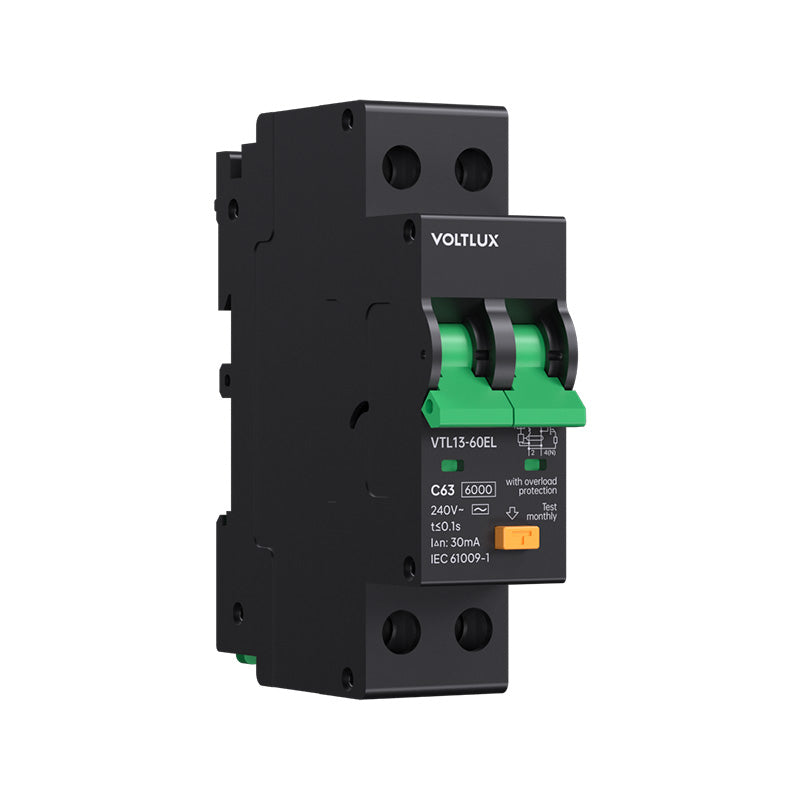

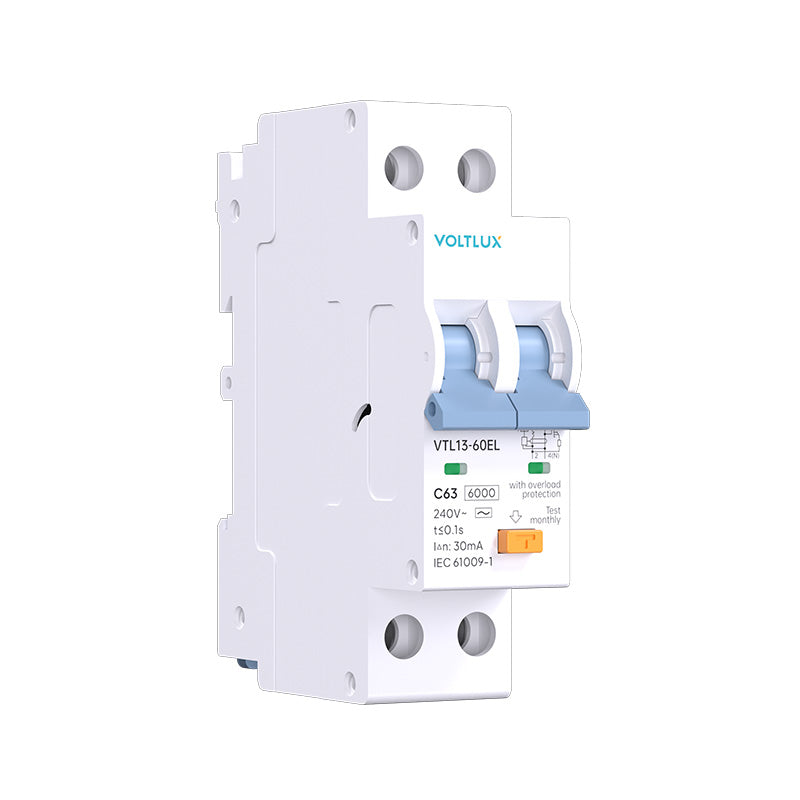

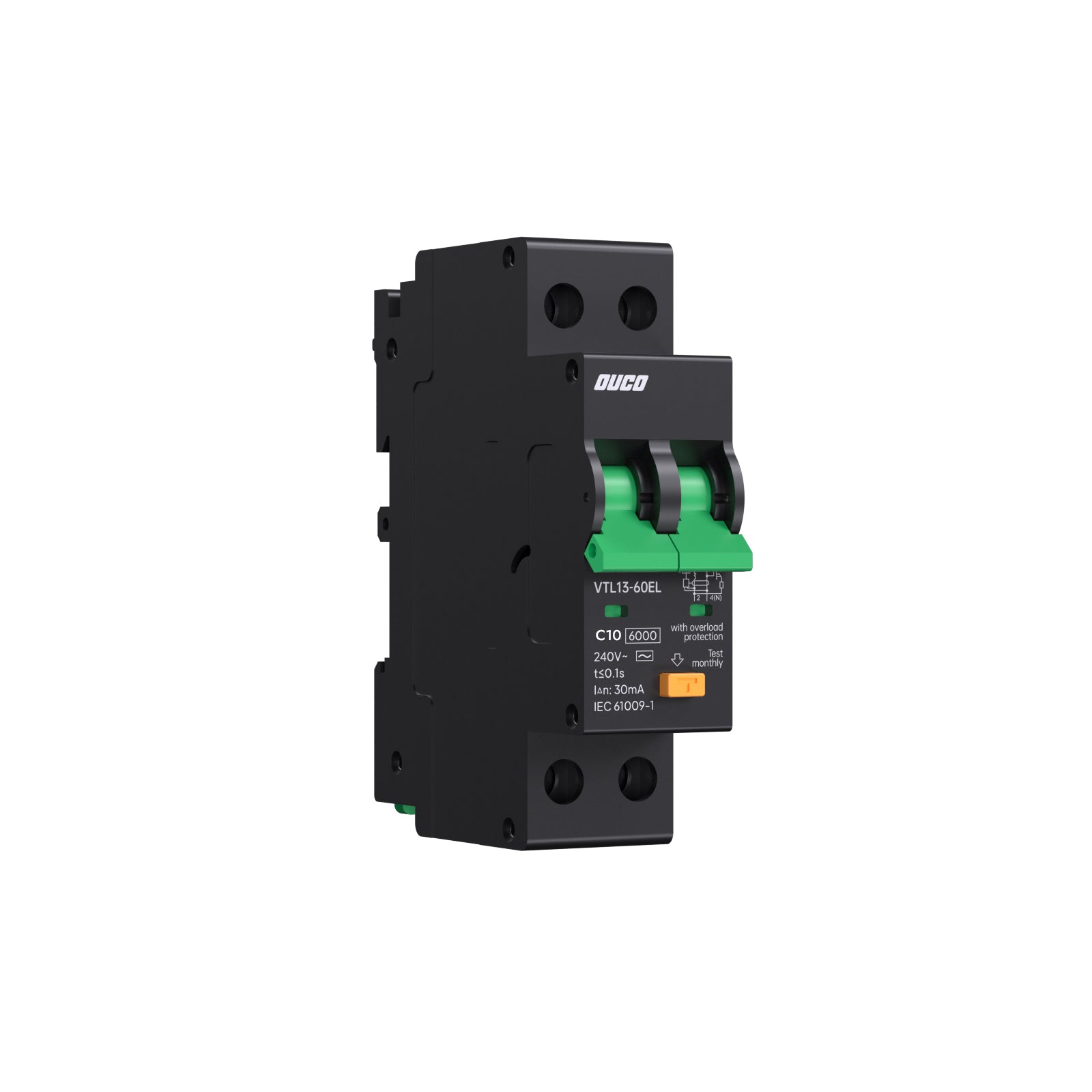

Dual Mount 2x13mm 60A RCBO

The VTL13-63EL series small leakage circuit breaker with overload Protection is suitable for distribution lines with a rated frequency of 50Hz, a rated working voltage of AC240V, and a rated working current of 63A and below. When a person is electrocuted or the leakage current of the power grid exceeds the specified value, the leakage circuit breaker can quickly cut off the faulty power supply in a very short time, protecting the safety of person and electrical equipment.

Electric parameter:
Number of poles ： 1P+N
Rated Current: 10A,16A,20A,25A,40A, 63A (30°C)
Operating voltage (Ue) VAC: 1P+N 240V
Breaking capacity (Icu) : 6KA
Earth leakage sensitivity :30 mA, Type A
Standards: IEC 60898-1 ,VC8035

C Curve:
Instantaneous trip: (7-10)In
Suitable Domestic and residential applications and electromagnetic starting loads with medium starting currents.
